Shell Hood

The Shell Hood has adjustable ratchet headgear attached to a sturdy fiberglass reinforced frame. Providing an excellent range of vision, the window is constructed of 40 mil vinyl permanently sealed to the hood with the use of a 17” X 8” cover window (20 mil thick) resting inside a snap-enclosed pocket for easy replacement. Underarm straps with plastic quick release fittings hold the front and rear bibs close to the body. A standard hang-up loop is included in the design for easy storage. Specially designed options include a perforated airline that provides airflow around the entire inside of the hood (some versions can accommodate a full-face airline respirator if needed) and the option to add headgear to accommodate a hard hat for additional protection. Available in chest length or waist length. The 077-4060 HiGlo Shell Hood design may be in stock and could ship within 2 business days. The remaining designs are manufactured to order.
FEATURED PRODUCTS
077-6172-****
Shell Hood in CPE Chest Length Buckle Closure
077-3674-****
Shell Hood in GraLite® 20 Chest Length Buckle Closure
077-6537-****
Shell Hood in HiGlo Chest Length Replaceable Inner Window Buckle Closure
077-6369-****
Shell Hood in WinterGlo 20 Waist Length Hook & Loop Closure

Existing Designs

Choices include only the options in use on an existing design. Scroll down to see all available options.

Filter By:

Click on box in left column and then on the Compare Products at bottom of chart to view side-by-side comparison of selected products. Limit of 3 at one time.

Description Length Fabric Shell Style Window
077-6172-****
Shell Hood  in CPE Chest Length Buckle Closure Requires Valve Belt Assembly sold separately. This Shell Hood is shown with the Ratchet headgear option. The 072-6169 Jacket and 074-6170 Bib Over...
Chest Length CPE 40 mil Window - 20 mil Cover Window View
077-6556-****
Chest Length Shell Hood Buckle Closure in FlexLite Orange. Requires Valve Belt Assembly sold separately. The Zip Clip headgear option is shown on this Shell Hood.  The 072-6540 Jacket and 074-6...
Chest Length Flexlite Orange 40 mil Window - 20 mil Cover Window View
077-3672-****
Chest Length Shell Hood Buckle Closure in GraLite®.  Requires Valve Belt Assembly sold separately. The Installed Hard Cap headgear option is featured in these photos. The 072-3918 Jacket a...
Chest Length GraLite® 40 mil Window - 20 mil Cover Window View
077-3674-****
Chest Length Shell Hood Buckle Closure in GraLite® 20 Requires Valve Belt Assembly sold separately. The Front Views show the Ratchet Headger and the Installed Hard Cap Headgear options. The 072...
Chest Length GraLite® 20 40 mil Window - 20 mil Cover Window View
077-6468-****
Shell Hood  in GraLite® 20 Waist Length Hook & Loop Closure. Requires Valve Belt Assembly sold separately. The Ratchet Headgear option is featured in these photos
Waist Length GraLite® 20 40 mil Window - 20 mil Cover Window View
077-4060-****
Shell Hood  in HiGlo Chest Length Buckle Closure Requires Valve Belt Assembly sold separately. The 072-4354 Jacket and 074-4046 Bib Overalls are sold separately.
Chest Length HiGlo 40 mil Window - 20 mil Cover Window View
077-6537-****
Chest length Shell Hood in HiGlo having a replaceable curved window and a  buckle closure. Requires a valve belt sold separately The Zip Clip and Hard Cap headgear option is featured in these p...
Chest Length HiGlo 125 mil Curved Window 40 mil Cover Window View
077-6657-****
Shell Hood in HiGlo Waist Length Hook & Loop Closure Requires Valve Belt Assembly sold separately. The Ratchet Headgear option is featured in these photos.  The 072-4354 Jacket and 074-4060...
Waist Length HiGlo 40 mil Window - 20 mil Cover Window View
077-5510-****
Shell Hood in WinterGlo Chest Length Buckle Closure Requires Valve Belt Assembly sold separately.
Chest Length WinterGlo 40 mil Window - 20 mil Cover Window View
077-5517-****
Shell Hood in WinterGlo 20 Chest Length Buckle Closure Requires Valve Belt Assembly sold separately. The Rachet Headgear option is featured in these photos.  The 072-5522 Jacket and 074-5516 Bi...
Chest Length WinterGlo 20 40 mil Window - 20 mil Cover Window View
077-6369-****
Shell Hood in WinterGlo 20 Waist Length Hook & Loop Closure Requires Valve Belt Assembly sold separately.
Waist Length WinterGlo 20 40 mil Window - 20 mil Cover Window View
Description Length Fabric Shell Style Window

Any asterisk (*) shown in an Item No. will be replaced with a combination of digits identifying all of the options selected.

Available Options

Select attribute from list to see available options. Select option photo to enlarge.
SS - Sold SeparatelyAO - Option available at time of order

Length

Chest Length

The bibs of Shell Hood extend past the shoulders to mid-chest in the front and to the shoulder blade region in the back.  Front to back straps under the arms hold the hood close to the body.

Waist Length

Garment length comes to just below the waist of an average build individual

Closure

Buckle Closure

Chemically resistant black plastic bayonet-style buckle fastener attached to a 1" black polypropylene webbing strap placed under the arms to hold the front and rear bibs loses to the body for comfort and splash protection.

Hook & Loop Closure

Tabs with 4" x 6" loop patches are added to the back section of the hood to fasten to the hook patches on the front section of the Hood for a snug fit. This option is only available on a waist length hood.

Shell Style Headgear AO

Ratchet Headgear

Shell frame with airline and an attached ratcheting band in the crown of the Hood that is adjustable to fit the wearer's head. This option is for use when a hard hat is not required. More Photos 3

Ratchet Headgear & Extenders Available

Shell frame with airline and an attached ratcheting band in the crown of the Hood that is adjustable to fit the wearer's head. This option is for use when a hard hat is not required. A 2" extension has been added to the Shell frame to hold the Hood crown off the top of the wearer's head. More Photos 3

Installed Hard Cap

Shell frame with airline and quick locks that hold the included and installed hard hat in place in the crown of the Hood. The hard hat has the ratcheting headgear for an adjustable fit to the wearer's head. More Photos 4

Extenders and Installed Hard Cap

Shell frame with airline and quick locks that hold the included and installed hard hat in place in the crown of the Hood. The hard hat has the ratcheting headgear for an adjustable fit to the wearer's head. A 2" extension has been added to the Shell frame to hold the Hood crown off the top of the hard hat.

Zip Clip for Hard Cap

Shell frame with airline and an attached band to hold a hard hat in place in the crown of the Hood. The hard hat is not included. More Photos 3

Zip Clip for Hard Cap and Extenders

Shell frame with airline and an attached band to hold a hard hat in place in the crown of the Hood. A 2" extension has been added to the Shell frame to hold the crown of the Hood off the top of a hard hat. The hard hat is not included. More Photos 2

Zip Clip and Hard Cap

Shell frame with airline and an attached band to hold the included hard hat in place in the crown of the Hood. The hard hat comes with ratcheting headgear for an adjustable fit to the wearer's head. More Photos 3

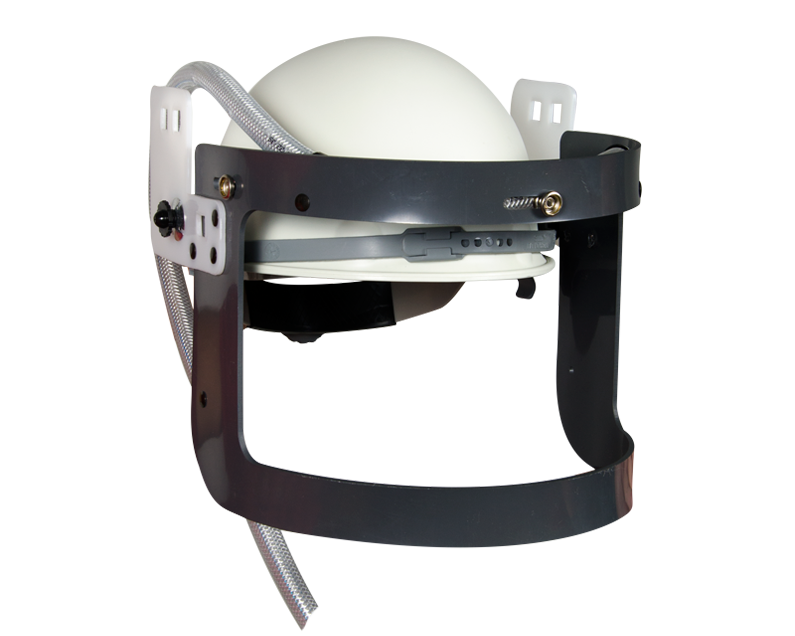

Zip Clip, Extenders Hard Cap

Shell frame with airline and an attached band to hold the included hard hat in place in the crown of the Hood. The hard hat comes with ratcheting headgear for an adjustable fit to the wearer's head. A 2" extension has been added to the Shell from to hold the crown of the Hood off the top of the hard hat. More Photos 2

Shell Style Window

40 mil Window - 20 mil Cover Window

40 mil vinyl window heat-sealed into the face of the hood of the garment. A 20 mil field replaceable cover window is also included installed over the sealed window for additional protection and to protect the sealed window from scratches and nicks. The cover window fits into the frame flaps surrounding the sealed window

125 mil Curved Window 40 mil Cover Window

125 mil non-flexing heat-curved 7 X 11 Polycarbonate window mounted onto an aluminum frame with a fabric flap to reduce the chance of splashes seeping into the hood. This option also includes a 40 mil thick field replaceable cover window to protect the sealed window from scratches, nicks and/or other minor damage. The cover window is installed between the curved window and the retainer clip

Shell Style Cover Window AO

40 mil window - 40 mil Cover Window

40 mil thick field replaceable cover window to protect the sealed window from scratches, nicks and/or other minor damage. The cover window fits inside the window frame flap surrounding the sealed window

40 mil window - 42 Non-fog Cover Window

A 42 mil Non-fog Cover Window is a field replaceable double-layer cover window measuring 8” H X 16½” W to be used on Shell Hoods with the standard size Shell window in conditions where window fogging could be an issue. Cover windows protect the sealed window from nicks, scratches and other minor damage.

Shell Style Cover Window Replacement SS AO

077-1012-17X8 - 20 mil Cover Window

Pack of 12 replacement 20 mil cover windows to protect the sealed window from scratches, nicks and/or other minor damage. The cover window fits inside the window frame flap surrounding the sealed window.

077-1012-0040 - 40 mil Cover Window

Pack of 12 replacement 40 mil cover windows to protect the sealed window from scratches, nicks and/or other minor damage. The cover window fits inside the window frame flap surrounding the sealed window.

077-1000-0041 - Non-fog Cover Window

1 each replacement 42 mil non-fog cover window is a field replaceable double-layer cover window measuring 8” H X 16½” W to be used on Shell Hoods with the standard size Shell window in conditions where window fogging could be an issue. Cover windows protect the sealed window from nicks, scratches and other minor damage.

Shell Curved Cover Window Replacement SS AO

077-1012-3000 - 40 mil Curved Cover Window

Pack of 12 40 mil thick field replaceable cover windows to protect the curved window from scratches, nicks and/or other minor damage. The cover window is installed between the curved window and the retainer clip.

Long Air Line

Longer than the standard 3' length for chest length garments and 3.5' length for waist length garments. Actual hose length to be determined when the new design is created.

Modified Air Hose Routing

The routing of the air hose in the interior of the garment is different than the standard routing.

Additional Garment Options Options available at time of order

Imprinted

See Imprinting Garments Category for more information on imprinting available

Fabric

CPE

Chlorinated Polyethylene is easily recognized by its bright orange color so that it is readily identifiable in hazardous conditions. CPE is a 23 mil thick proprietary formulated fabric that provides outstanding chemical and flame resistance while maintaining flexibility in low temperatures. It also provides superior protection from inorganic acids, oxidizing acids and aliphatic hydro-carbons. CPE fabric meets and exceeds the Flame Impingement criteria set forth in ASTM F1358.

HiGlo

HiGlo is a bright yellow, proprietary polyvinyl chloride compound that is coated on both sides. Our compound gives the fabric a softer, more pliant feel and superb low temperature flexibility. At 19 mils to 21 mils thick, HiGlo is the fabric of choice for maintenance and operations personnel within the chemical/petrochemical and HF Refining industries.

Ebony

Ebony is charcoal black, proprietary polyvinyl chloride compound that is coated on both sides. Our compound gives the fabric a softer, more pliant feel and superb low temperature flexibility. At 19 mils to 21 mils thick, Ebony is the fabric of choice for especially dirty maintenance functions within the chemical/petrochemical and HF Refining industries.

Flexlite Orange

Flexlite Orange is easily recognized by its bright neon orange color. At 19 mils to 21 mils thick, FlexLite Orange is similar to HiGlo except for its difference in color.

GraLite® 20

GraLite® 20 is recommended for more severe corrosive and abrasive conditions because of its 24 mils to 26 mils thickness. With a PVC coating on one side, GraLite® 20 has proven itself to be a rugged, durable protective fabric.

GraLite®

GraLite® is a pearl gray, proprietary polyvinyl chloride compound that is coated on both sides. The 19 mils to 21 mils thick material offers resistance to most aliphatic hydrocarbons, caustics, organic acids and alcohols.

WinterGlo 20

Winter Glo® 20 is 24 mils to 26 mils thick and offers outstanding chemical resistance. WinterGlo 20 is easily identified by its one side coating and our proprietary PVC formulation keeps fabric soft and flexible year round.

WinterGlo

WinterGlo is a bright pink and coated on both sides. WinterGlo is 19 mils to 21 mils thick and easily identified by its distinctive color and flexibility.
