Standard Glove Change on All PVC Garments. Read More

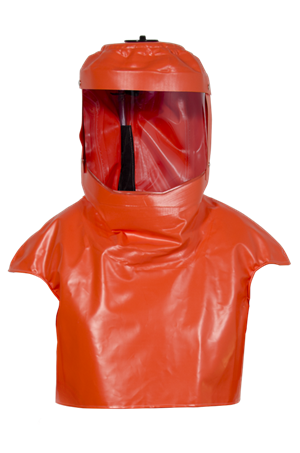

Shoulder Mount Hood

StaSafe® Shoulder-Mounted Hood is ideal for long hours of work because there is no restrictive headgear. The weight of the hood rests on the shoulders. Adjustable underarm straps hold the front and rear bibs close to the body for comfort and splash protection. The viewing window is constructed of a 40 mils vinyl and permanently sealed to the hood and is protected by a clear, replaceable 20 mils acetate splash window on the outside. A 3/8” I.D. air supply tube extends to the top of the hood. Available in chest length or waist length. Shoulder Mount Hood designs are manufactured to order.
FEATURED PRODUCTS
077-6512-****
Shoulder Mount Hood in CPE Waist Length Hook & Loop Closure No Bottom Cover Window Flap
077-6639-****
Enlarged Shoulder Mount Hood in GraLite® 20 Chest Length Buckle Closure Cover Window
077-5664-****
Shoulder Mount Hood in GraLite® 20 Chest Length Buckle Closure
077-6828-****
Shoulder Mount Hood in HiGlo Waist Length Hook & Loop Closure Over-sized Window Cover Window
077-6980-****
Shoulder Mount Hood in WinterGlo 20 Waist Length Hook & Loop Closure Over-sized Window Cover Window

Existing Designs

Choices include only the options in use on an existing design. Scroll down to see all available options.

Filter By:

Click on box in left column and then on the Compare Products at bottom of chart to view side-by-side comparison of selected products. Limit of 3 at one time.

Description Fabric Length-SM Hood Window Style
077-6453-****
Shoulder Mount Hood CPE fabric Chest length Buckle closure Standard size window Cover window w/o snaps Requires Valve Belt Assembly sold separately.
CPE Chest Length Standard size window - cover window frame flaps - cover window installs in flaps View
077-6375-****
Shoulder Mount Hood CPE fabric Waist length Hook & loop closure Standard size window Cover window w/o snaps Requires Valve Belt Assembly  Valve Belt with fitting is an availab...
CPE Waist Length Standard size window - cover window frame flaps - cover window installs in flaps View
077-6512-****
Shoulder Mount Hood CPE fabric Waist length Hook & loop closure Standard size window w/o bottom window flap Cover window w/snaps Requires Valve Belt Assembly  Valve Belt with fitt...
CPE Waist Length Standard size window - no bottom flap - cover window has snaps View
077-6838-****
Shoulder Mount Hood CPE fabric Waist length Hook & loop closure Oversized window Cover window w/snaps Requires Valve Belt Assembly  Valve Belt with fitting is an available option -...
CPE Waist Length Over-sized window - no bottom flap - cover window has snaps View
077-6597-****
Shoulder Mount Hood FlexLite Orange fabric Chest length Buckle closure Standard size window Cover window w/o snaps Requires Valve Belt Assembly sold separately.
FlexLite Orange Chest Length Standard size window - cover window frame flaps - cover window installs in flaps View
077-5424-****
Shoulder Mount Hood GraLite® fabric Chest length Buckle closure Standard size window Cover window w/o snaps Requires Valve Belt Assembly sold separately. This hood is shown with 073-677...
GraLite® Chest Length Standard size window - cover window frame flaps - cover window installs in flaps View
077-6639-****
Enlarged Shoulder Mount Hood GraLite® 20 fabric Chest length Buckle closure Standard size window Cover window w/o snaps Requires Valve Belt Assembly sold separately.
GraLite® 20 Chest Length Standard size window - cover window frame flaps - cover window installs in flaps View
077-5664-****
Shoulder Mount Hood GraLite® 20 fabric Chest length Buckle closure Standard size window Cover window w/o snaps Requires Valve Belt Assembly sold separately.
GraLite® 20 Chest Length Standard size window - cover window frame flaps - cover window installs in flaps View
077-6665-****
Shoulder Mount Hood GraLite® 20 fabric Waist length Hook & loop closure Standard size window Cover window w/o snaps Requires Valve Belt Assembly  Valve Belt with fitting i...
GraLite® 20 Waist Length Standard size window - cover window frame flaps - cover window installs in flaps View
077-6887-****
Shoulder Mount Hood GraLite® 20 fabric Waist length Hook & loop closure Standard size window Cover window w/o snaps SCBA back (expanded to accomodate SCBA) Requires Valve Belt ...
GraLite® 20 Waist Length Standard size window - cover window frame flaps - cover window installs in flaps View
077-6391-****
Shoulder Mount Hood HiGlo fabric Chest length Buckle closure Standard size window Cover window w/o snaps Requires Valve Belt Assembly sold separately. The 072-4354 Jacket and 072-4046 bib O...
HiGlo Chest Length Standard size window - cover window frame flaps - cover window installs in flaps View
077-6659-****
Shoulder Mount Hood HiGlo fabric Waist length Hook & loop closure Standard size window Cover window w/o snaps Requires Valve Belt Assembly  Valve Belt with fitting is an available ...
HiGlo Waist Length Standard size window - cover window frame flaps - cover window installs in flaps View
077-6828-****
Shoulder Mount Hood HiGlo fabric Waist length Hook & loop closure Over-sized window Cover window w/snaps Requires Valve Belt Assembly  Valve Belt with fitting is an available optio...
HiGlo Waist Length Over-sized window - no bottom flap - cover window has snaps View
077-6975-****
Shoulder Mount Hood HiGlo fabric Waist length Hook & loop closure Standard size window Cover window w/o snaps Bullet muffler Requires Valve Belt Assembly  Valve Belt with fitting ...
HiGlo Waist Length Standard size window - cover window frame flaps - cover window installs in flaps View
077-6126-****
Shoulder Mount Hood WinterGlo fabric Chest length Buckle closure Standard size window Cover window w/o snaps Requires Valve Belt Assembly sold separately. The 073-6168 Coverall is sold sepa...
WinterGlo Chest Length Standard size window - cover window frame flaps - cover window installs in flaps View
077-6465-****
Shoulder Mount Hood WinterGlo 20 fabric Chest length Buckle closure Standard size window Cover winodw w/o snaps Requires Valve Belt Assembly sold separately.
WinterGlo 20 Chest Length Standard size window - cover window frame flaps - cover window installs in flaps View
077-6980-****
Shoulder Mount Hood WinterGlo 20 fabric Waist length Hook & loop closure Over-sized window Cover window w/snaps Requires Valve Belt Assembly  Valve Belt with fitting is an availabl...
WinterGlo 20 Waist Length Over-sized window - no bottom flap - cover window has snaps View
Description Fabric Length-SM Hood Window Style

Any asterisk (*) shown in an Item No. will be replaced with a combination of digits identifying all of the options selected.

Available Options

Select attribute from list to see available options. Select option photo to enlarge.
SS - Sold SeparatelyAO - Option available at time of order

Hood-SM Hood

Shoulder Mount Hood

The Shoulder Mount Hood is ideal for long hours of work because there is no restrictive headgear to cause fatigue. The weight of the hood rests on the shoulders.

Enlarged Shoulder Mount Hood

The Enlarged Shoulder Mount hood has been designed to make the front of the hood approximately 6 inches wider than the standard Shoulder Mount Hood and the back of the hood is approximately 3 inches wider.

Length-SM Hood

Chest Length

The bibs of Shoulder Mount Hood extend past the shoulders to mid-chest in the front and to the shoulder blade region in the back.  Front to back straps under the arms hold the hood close to the body.

Waist Length

Garment length comes to just below the waist of an average build individual

Closure-SM Hood

Buckle Closure for Chest Length Hoods

Chemically resistant black plastic bayonet-style buckle fastener attached to a 1" black polypropylene webbing strap placed under the arms to hold the front and rear bibs close to the body for comfort and splash protection.

Hook & Loop Closure for Waist Length Hoods

Tabs with 4" x 6" loop patches are added to the back section of the hood to fasten to the hook patches on the front section of the Hood for a snug fit.

Window Style

Standard size window - cover window frame flaps - cover window installs in flaps

40 mil vinyl window heat-sealed into the face of the hood of the garment. A field replaceable cover window is also included installed over the sealed window for additional protection and to protect the sealed window from scratches and nicks. The cover window is held in place by the surrounding window frame flaps.

Standard size window - no bottom flap - cover window has snaps

40 mil vinyl window heat-sealed into the face of the hood of the garment. A field replaceable cover window is also included installed over the sealed window for additional protection and to protect the sealed window from scratches and nicks. The cover windows is held in place by snaps.

Over-sized window - no bottom flap - cover window has snaps

A larger 40 mil vinyl window for increased visibility is heat-sealed into the face of the hood of the garment. A field replaceable cover window is also included installed over the sealed window for additional protection and to protect the sealed window from scratches and nicks. The cover window is held in place by snaps.

Window/Cover Window Options -SM Hood AO

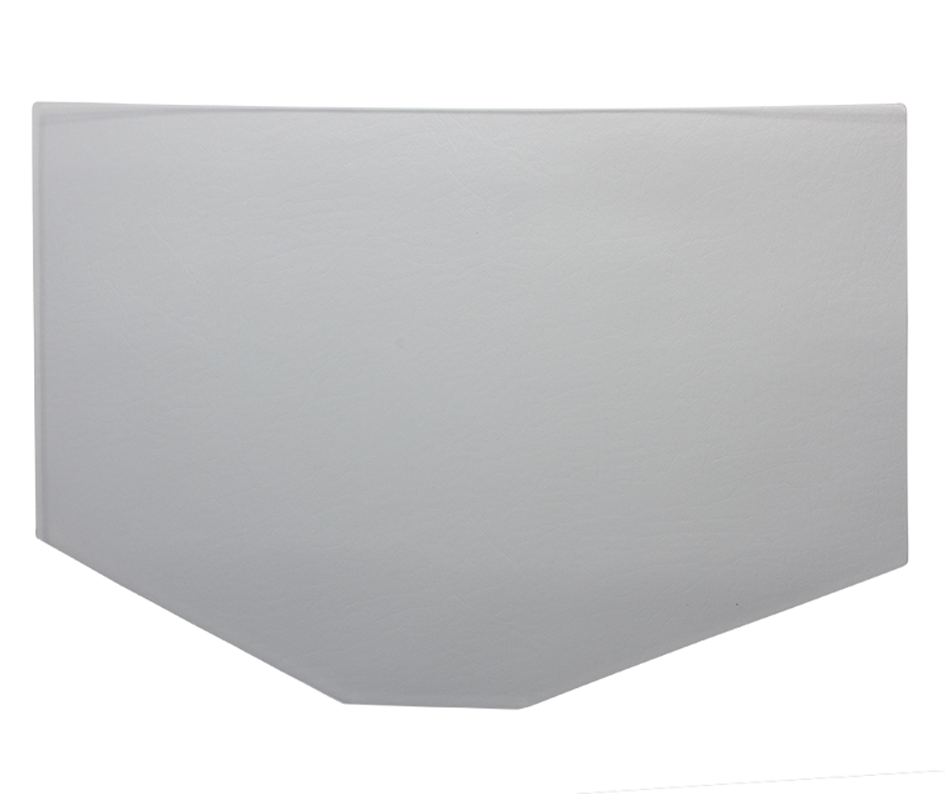

20 mil Cover Window

A 20 mil field replaceable cover window is installed over the sealed window for additional protection and to protect the sealed window from scratches and nicks. The cover window fits into the frame flaps surrounding the sealed window or snaps into place for over-sized windows and standard sized-no bottom flap windows.

40 mil Cover Window

A 40 mil field replaceable cover window is installed over the sealed window for additional protection and to protect the sealed window from scratches and nicks. The cover window fits into the frame flaps surrounding the sealed window or snaps into place for over-sized windows.

Window - Cover Window Replacement Packs -SM Hood SS AO

077-1012-5424 - 20 mil Std Size Cover Window (option for standard size window with bottom flap)

Pack of 12 (20 mil) field replaceable cover windows to install over the standard size sealed window for additional protection and to protect the sealed window from scratches and nicks. The cover window fits into the frame flaps surrounding the sealed window.

077-1012-5760 - 40 mil Std Size Cover Window (option for standard size window with bottom flap)

Pack of 12 (40 mil) field replaceable cover windows to protect the sealed window from scratches, nicks and/or other minor damage. The cover window fits inside the window frame flap surrounding the sealed window.

077-1012-6512 - 20 mil Std Size Cover Window (option for standard size window without bottom flap)

Pack of 12 (20 mil) field replaceable cover windows to install over the standard size sealed window with the omitted bottom window flap option for additional protection and to protect the sealed window from scratches and nicks. The cover window is held in place by 2 snaps.

077-1012-6828 - 20 mil Cover Window (option for over-sized window)

Pack of 12 (20 mil) field replaceable cover window to install over the over-sized sealed window for additional protection and to protect the sealed window from scratches and nicks. The cover window has 3 snaps to hold it in place.

077-1012-6829 - 40 mil Cover Window (option for over-sized window)

Pack of 12 (40 mil) field replaceable cover window to install over the over-sized sealed window for additional protection and to protect the sealed window from scratches and nicks. The cover window has 3 snaps to hold it in place.

Long Air Line

Longer than the standard air line. Actual hose length to be determined when the new design is created.

SCBA Back-SM Hood

The back of the hood is expanded to accommodate an SCBA tank.

Optional Valve Belt [AO] AO

Valve Belt with Hansen Fitting

The belt and fitting provided with the garment for connecting to the air source

Valve Belt with Schrader Fitting

The belt and fitting provided with the garment for connecting to the air source

Valve Belt with Snap-Tite® Fitting

The belt and fitting provided with the garment for connecting to the air source

Valve Belt with Brass Snap-Tite® Fitting

The belt and fitting provided with the garment for connecting to the air source

Valve Belt with Tru-Flate® Fitting

The belt and fitting provided with the garment for connecting to the air source

Additional Garment Options AO

Imprinted

See Imprinting Garments Category for more information on imprinting available

Fabric

HiGlo

HiGlo is a bright yellow, proprietary polyvinyl chloride compound that is coated on both sides. Our compound gives the fabric a softer, more pliant feel and superb low temperature flexibility. At 19 mils to 21 mils thick, HiGlo is the fabric of choice for maintenance and operations personnel within the chemical/petrochemical and HF Refining industries.

CPE

Chlorinated Polyethylene is easily recognized by its bright orange color so that it is readily identifiable in hazardous conditions. CPE is a 23 mil thick proprietary formulated fabric that provides outstanding chemical and flame resistance while maintaining flexibility in low temperatures. It also provides superior protection from inorganic acids, oxidizing acids and aliphatic hydro-carbons. CPE fabric meets and exceeds the Flame Impingement criteria set forth in ASTM F1358.

GraLite®

GraLite® is a pearl gray, proprietary polyvinyl chloride compound that is coated on both sides. The 19 mils to 21 mils thick material offers resistance to most aliphatic hydrocarbons, caustics, organic acids and alcohols.

FlexLite Orange

FlexLite Orange is easily recognized by its bright neon orange color. At 19 mils to 21 mils thick, FlexLite Orange is similar to HiGlo except for its difference in color.

GraLite® 20

GraLite® 20 is recommended for more severe corrosive and abrasive conditions because of its 24 mils to 26 mils thickness. With a PVC coating on one side, GraLite® 20 has proven itself to be a rugged, durable protective fabric.

WinterGlo

WinterGlo is a bright pink and coated on both sides. WinterGlo is 19 mils to 21 mils thick and easily identified by its distinctive color and flexibility.

WinterGlo 20

WinterGlo® 20 is 24 mils to 26 mils thick and offers outstanding chemical resistance. WinterGlo 20 is easily identified by its one side coating and our proprietary PVC formulation keeps fabric soft and flexible year round.
