ChemMaster®

The StaSafe® ChemMaster® is made from a strong, flexible chlorinated polyethylene (CPE) fabric that has built-in flame and chemical resistance. All ChemMaster® suits come with the SealTite® glove assembly. This assembly provides a liquid-tight, vapor-tight seal when worn with one of our beaded gloves that offers optimum protection from splashes on the wearer’s forearm. Neoprene gloves provide superior chemical resistance and can be removed and replaced quickly. All ChemMaster® suits have an expanded back providing plenty of room for an SCBA and have the All-Purpose Hood, which offers an extra large window providing unhampered head movement and reinforced elbows and knees. Pressure-sealing zipper with T-handles for easy donning and doffing are available on both front and rear entry suits. CPE stocking-foot booties are sewn and armored to the leg. Durable chemical boots with steel shank and toe - fit over the booties. Options available include, vent system, air pass-throughs, AC, or reinforcing the crotch or seat areas. Every ChemMaster® must comply with the ASTM1052 inflation testing standard to ensure it’s air-tight integrity before leaving the factory. ChemMaster® suits are manufactured to order. Video demonstrations on the installation and removal of the SealTite® Sleeve Insert and Gloves are available in the SUPPORT link on our website.
FEATURED PRODUCTS
076-6600-****
Front Entry ChemMaster® in CPE Attached CPE Stocking Foot Booties
076-7110-****
Front Entry ChemMaster® in CPE Attached Hazmax® Steel-toe Boots
076-6408-****
Rear Entry ChemMaster® in CPE Attached Hazmax® Over-the-shoe Boots
076-7177-****
Front Entry ChemMaster® in CPE Attached CPE Stocking Foot Booties Cover Window AC
076-7084-****
Front Entry ChemMaster® in CPE Attached CPE Stocking Foot Booties Cover Window Vent & Fitting

Existing Designs

Choices include only the options in use on an existing design. Scroll down to see all available options.

Filter By:

Click on box in left column and then on the Compare Products at bottom of chart to view side-by-side comparison of selected products. Limit of 3 at one time.

Description Entry-ChemMaster Attached Footwear-ChemMaster Cover Window-ChemMaster
076-6600-****
Front entry ChemMaster® Attached CPE stocking foot booties Reinforced elbows and knees Choice of available gloves Option to add offered boots
Front Entry Attached CPE Stocking Foot Booties No Cover Window or window frame included in design. View
076-7029-****
Front entry ChemMaster® Attached CPE stocking foot booties Reinforced elbows and knees Choice of available gloves  Option to add offered boots INCLUDES 40 mil cover window
Front Entry Attached CPE Stocking Foot Booties 40 mil Cover Window and window flaps included. View
076-7110-****
Front entry ChemMaster® Attached Hazmax® steel-toe boots Reinforced elbows and knees Choice of available gloves
Front Entry Attached Hazmax® Steel-toe Boots No Cover Window or window frame included in design. View
076-6548-****
Rear entry ChemMaster® Attached Hazmax® steel-toe boots Reinforced elbows and knees Choice of available gloves
Rear Entry Attached Hazmax® Steel-toe Boots No Cover Window or window frame included in design. View
076-7002-****
Front entry ChemMaster® Attached CPE stocking foot booties Reinforced elbows and knees Choice of available gloves Option to add offered boots INCLUDES 3 Hang up loops
Front Entry Attached CPE Stocking Foot Booties No Cover Window or window frame included in design. View
076-6180-****
Rear entry ChemMaster® Attached CPE stocking foot booties Reinforced elbows and knees Choice of available gloves Option to add offered boots
Rear Entry Attached CPE Stocking Foot Booties No Cover Window or window frame included in design. View
076-6408-****
Rear entry ChemMaster® Attached Hazmax® Over-the-shoe boots Reinforced elbows and knees Choice of available gloves
Rear Entry Attached Hazmax® Over-the-shoe Boots No Cover Window or window frame included in design. View
076-7177-****
Front entry ChemMaster® Attached CPE stocking foot booties Reinforced elbows and knees Choice of available gloves Option to add offered boots INCLUDES 40 mil cover window AC unit...
Front Entry Attached CPE Stocking Foot Booties 40 mil Cover Window and window flaps included. View
076-7084-****
Front entry ChemMaster® Attached CPE stocking foot booties Reinforced elbows and knees Choice of available gloves Option to add offered boots INCLUDES 40 mil cover window Vent sy...
Front Entry Attached CPE Stocking Foot Booties 40 mil Cover Window and window flaps included. View
Example of a Front entry ChemMaster® SHOWN WITH installed optional D-Ring & Brass Pass-through
Front Entry Attached CPE Stocking Foot Booties No Cover Window or window frame included in design. View
Description Entry-ChemMaster Attached Footwear-ChemMaster Cover Window-ChemMaster

Any asterisk (*) shown in an Item No. will be replaced with a combination of digits identifying all of the options selected.

Available Options

Select attribute from list to see available options. Select option photo to enlarge.
SS - Sold SeparatelyAO - Option available at time of order

Entry-ChemMaster

Front Entry

A pressure-sealing zipper with a flap covering the zipper extending from the shoulder crossing the body to the opposite side knee area for ease of donning and doffing.

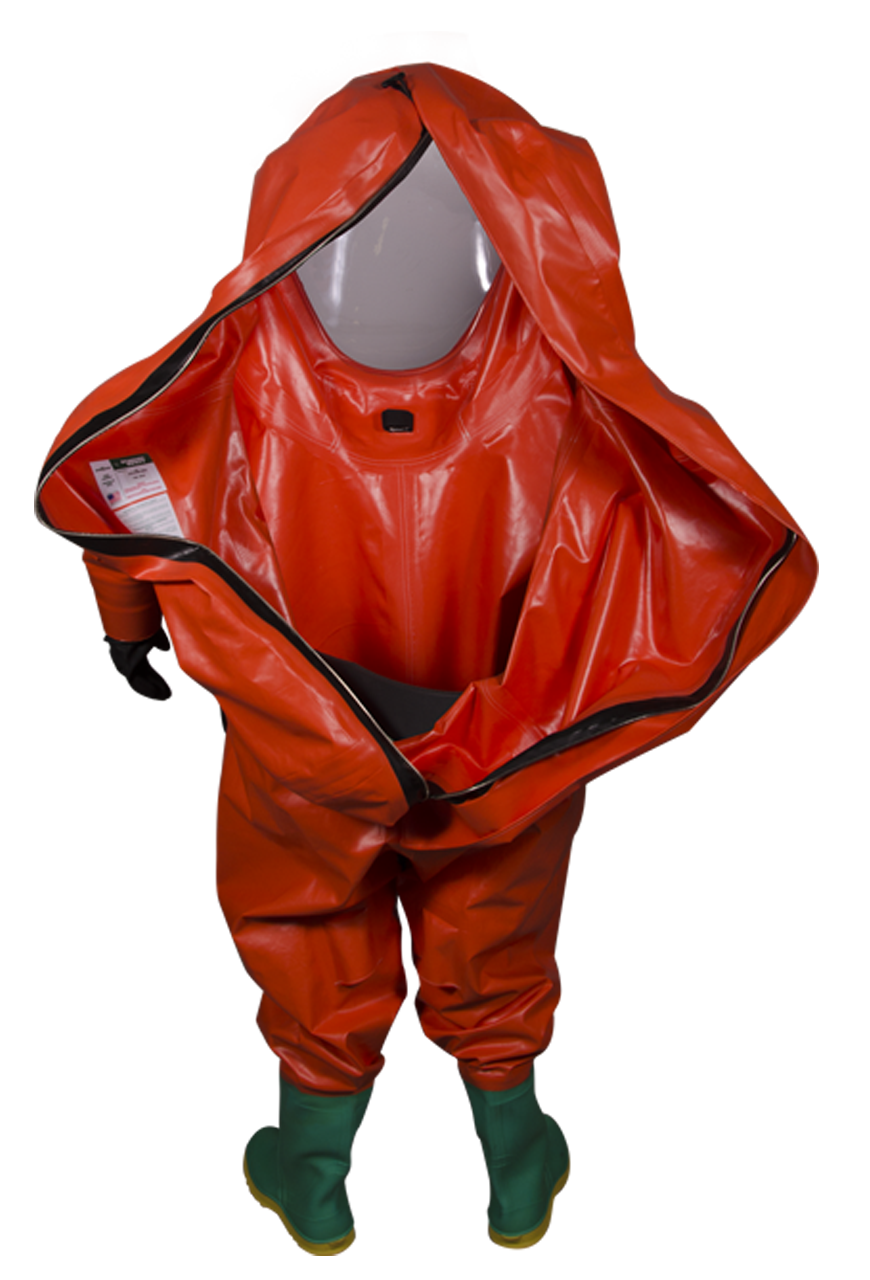

Rear Entry

A pressure-sealing zipper extending from the crown nearly to the crotch area for ease of donning and doffing.

Gloves for CPE Fabric AO

Black Butyl

Per the glove manufacturer, this glove has a fabric lining, chemical resistance for very corrosive acids, ketones, esters and amine derivatives with unrivaled flexibility and dexterity.

Black Neoprene

Per the glove manufacturer: “Broad chemical resistance (acids, aliphatic solvents, solvent mixtures), increased by the thickness of the material. Good grip, due to embossed texture. Easy to pull on and off, due to chlorinated interior. The two neoprene layers superimposed increase the mechanical and chemical resistance. The glove red inner lay ensures that any wear is clearly visible"

Heavy Duty Black Neoprene

According to the glove manufacturer – this glove has “superior chemical resistance against acids and alkalis, such as concentrated hydrofluoric acid, oils, and greases” It also offers some insulation from hot liquids due to the cotton lining.

View Gloves & Sleeves category for specialty glove availability

In addition to the gloves we sell with the garment, we offer specialty gloves available in case quantities.

Attached Footwear-ChemMaster

Attached Hazmax® Over-the-shoe Boots

Over-the-shoe Hazmax® boot fits over most shoes and boots and provides excellent chemical resistance. It has a seamless one-piece injection mold construction from a high viscosity flexible PVC that has been permanently attached/sealed to the end of the leg. This seal is liquid and vapor tight

Attached Hazmax® Steel-toe Boots

Green Hazmax® boot with a steel toe that complies with ASTM F2413-05 and CSA Z195 and a steel shank and midsole. that has been permanently attached/sealed to the end of the leg. The one-piece PVC boot construction makes this a suitable boot for use in environments involving chemicals. The seal is liquid and vapor tight.

Attached CPE Stocking Foot Booties

CPE Stocking Foot Booties are made from CPE fabric and permanently attached to the leg cuff. This bootie is comfortable and shaped to fit smoothly into a work boot. A flap is permanently attached to the outer leg area and drapes over the top of the boot reducing the opportunity for splashes to enter the inside of the work boot. Boots must be worn over the booties.

Boots Available with Stocking Foot Booties-ChemMaster

PVC Composite-toe Boots

PVC boot with a Composite safety-toe that meets ASTM F2413 M/I/75/C/75 EH*. This boot is 100% waterproof, does not transfer cold or set off metal detectors. The outsole provides slip resistance as well as has a chemical resistance to fats, oils, certain acids, alkalies, petroleum hydrocarbons, and other chemicals. *Boot offers some electrical hazard protection. Contact Customer Service for specific electrical hazard protection information.

Cover Window-ChemMaster

40 mil Cover Window and window flaps included.

40 mil thick field replaceable cover window to protect the sealed window from scratches, nicks and/or other minor damage. Flaps are added around the TEG window. The bottom flap has drain holes in the bottom and an extra splash flap. The cover window fits inside the window frame flaps surrounding the sealed window.

No Cover Window or window frame included in design.

The window frame and added cover window are not included in this design.

TEG Cover Window Replacement-ChemMaster SS AO

807-8006-0050 - 40 mil Cover Window

40 mil thick field replaceable cover window to protect the sealed window from scratches, nicks and/or other minor damage. Flaps are added around the TEG window. The bottom flap has drain holes in the bottom and an extra splash flap. The cover window fits inside the window frame flaps surrounding the sealed window.

AC-Vent-ChemMaster

AC Unit

Adding an air-conditioning unit helps to keep the environment inside the garment comfortable. We offer a variety of AC units in cool only or cool/warm. Contact our Customer Service to determine which units are available with this suit.

Vent

A vent is added to improve the comfort level of interior suit environment while in use. Click on the image to view larger.

AC Unit & Vent

Adding an air-conditioning unit and a vent system helps to keep the environment inside the garment comfortable and air circulating. We offer a variety of AC units in cool only or cool/warm. Contact our Customer Service to determine which units are available with this suit.

Fitting for Vent AO

Brass Snap-Tite® Fitting

The fitting provided with the garment for connecting to the air source

Hansen Fitting

The fitting provided with the garment for connecting to the air source

Schrader Fitting

The fitting provided with the garment for connecting to the air source

Snap-Tite® Fitting

The fitting provided with the garment for connecting to the air source

Tru-Flate® Fitting

The fitting provided with the garment for connecting to the air source

Pass-through Available SS

NIOSH approved garment pass-through can be added for an additional fee. FACTORY INSTALLATION ONLY

Customer-supplied Pass-through Installation Available SS

We will install customer-supplied pass-through device other than Scott for an additional fee.

Reinforced Crotch-ChemMaster

An extra triangular patch of garment fabric is sewn and sealed in the crotch region for added strength.

Reinforced Elbows-ChemMaster

The elbow, knee and seat regions are more at risk for cuts, tears and wear in some conditions. For added protection, an extra layer of fabric is sewn into the seams and sealed with the seams as well as on the top and bottom of the extra panel.

Reinforced Knees-ChemMaster

The elbow, knee and seat regions are more at risk for cuts, tears and wear in some conditions. For added protection, an extra layer of fabric is sewn into the seams and sealed with the seams as well as on the top and bottom of the extra panel.

Reinforced Seat-ChemMaster

The elbow, knee and seat regions are more at risk for cuts, tears and wear in some conditions. For added protection, an extra layer of fabric is sewn into the seams and sealed with the seams as well as on the top and bottom of the extra panel.

Additional Garment Options AO

Imprinted

See Imprinting Garments Category for more information on imprinting available

Addition of 1 or 2 pockets available

1 or 2 pockets can be sealed onto many of our garments. Standard pockets come with drain holes in the bottom. Current pocket sizes offered are: 5" x 6" (no drain holes), 5" x 9", 7" x 7" and 10" x 10". The pocket will be manufactured from the same fabric as the garment. More Photos 3

+/- 3" increments to sleeve length available

The design of our garments allows for non-binding movements such as reaching, bending, stooping, sitting, squatting etc. for the typical height and stature per size. For taller or shorter users we will customize the standard garment, sleeve or leg length plus or minus in 3" increments to allow a custom fit. Contact our Customer Service Department for more information.

Addition of hang-up loops

A heavy duty ring attached to the garment for easy storage. This ring is NOT to be used as a rescue-ring.

Retrieval D-Ring Available SS

A Retrieval D-Ring can be added at an additional fee to any TEG. FACTORY INSTALLATION ONLY

Fabric

CPE

Chlorinated Polyethylene is easily recognized by its bright orange color so that it is readily identifiable in hazardous conditions. CPE is a 23 mil thick proprietary formulated fabric that provides outstanding chemical and flame resistance while maintaining flexibility in low temperatures. It also provides superior protection from inorganic acids, oxidizing acids and aliphatic hydro-carbons. CPE fabric meets and exceeds the Flame Impingement criteria set forth in ASTM F1358.
